Infrared light is invisible to human eyes, yet it plays a major role in the way modern cameras, security systems, automation equipment, and scientific sensors perceive the world. By using wavelengths just beyond visible red light, infrared illumination allows devices to “see” in darkness, measure heat-related patterns, detect motion, and capture details that ordinary lighting may miss.
TLDR: Infrared light is a form of electromagnetic radiation that sits just beyond visible red light. Cameras and sensors use it to illuminate scenes, detect objects, measure distance, or capture information in low-light and no-light conditions. IR lighting is especially useful for night vision, surveillance, machine vision, remote controls, and environmental sensing.
What Infrared Light Is
Infrared, often shortened to IR, refers to light with wavelengths longer than visible red light and shorter than microwaves. Human vision generally detects wavelengths from about 400 to 700 nanometers, while infrared begins just beyond that range. Although people cannot see IR light directly, many electronic sensors can detect it very effectively.
Infrared light is usually divided into categories:
- Near infrared: Often used by cameras, night vision systems, remote controls, and optical sensors.
- Short wave infrared: Used in industrial inspection, moisture detection, and specialized imaging.
- Mid and long wave infrared: Commonly associated with thermal imaging and heat detection.
For most security cameras and consumer sensors, near infrared is the most relevant type. It behaves somewhat like visible light: it can be emitted, reflected from objects, focused through lenses, and detected by image sensors.
How Infrared Lighting Works with Cameras
Many cameras designed for low-light use include small IR LEDs around the lens. These LEDs shine infrared light onto a scene. While the area may look completely dark to a person, the camera sensor can detect the reflected IR light and create an image.
This is why many night vision security cameras produce black-and-white footage at night. The camera switches from normal visible-light imaging to an infrared-sensitive mode. In this mode, a filter that blocks infrared during daytime operation is moved away, allowing IR light to reach the sensor.
During the day, that filter is important because infrared light can distort colors. Without it, green plants, dark fabrics, and reflective surfaces may appear unnatural. At night, accurate color is usually less important than visibility, so the camera allows infrared through and often records in grayscale.
Why Infrared Images Are Often Black and White
Infrared cameras commonly display night footage in black and white because the sensor is measuring brightness, not visible color. Since IR light sits outside human color perception, there is no true “infrared color” for a standard display to show. Instead, software maps the strength of reflected IR light into shades of gray.
Objects that reflect more IR appear lighter. Objects that absorb more IR appear darker. This can create images that look different from daylight scenes. For example, some fabrics, paints, glass, and vegetation may reflect infrared light in unexpected ways.
Common Infrared Wavelengths for Cameras
Most IR security lights use wavelengths around 850 nm or 940 nm. Both are invisible or nearly invisible to people, but they behave slightly differently.
- 850 nm: Offers strong camera sensitivity and longer illumination range. Many IR LEDs at this wavelength produce a faint red glow when viewed directly.
- 940 nm: Produces little to no visible glow, making it more discreet. However, many cameras are less sensitive to it, so range may be shorter.
Choosing between them depends on the application. A parking lot security camera may benefit from the stronger range of 850 nm. A covert wildlife camera or discreet indoor sensor may prefer 940 nm.
How Sensors Use Infrared Light
Infrared is not limited to cameras. Many sensors use IR to detect objects, measure distance, and interpret motion. Some actively emit IR light and measure what comes back. Others passively detect infrared radiation already present in the environment.
Active IR sensors send out infrared light and watch for reflection or interruption. These sensors are found in automatic faucets, proximity detectors, barcode scanners, robotics, and object counters. If an object enters the beam or reflects enough IR back, the sensor registers a change.
Passive infrared sensors, often called PIR sensors, do not emit light. Instead, they detect changes in infrared radiation caused by warm bodies moving through their field of view. This is why PIR sensors are common in motion-activated lights, alarm systems, and occupancy detection devices.
IR Illumination Versus Thermal Imaging
Infrared night vision and thermal imaging are often confused, but they work differently. A typical IR night vision camera uses an infrared light source and records reflected light, much like a flashlight and camera combination. If there is no IR illumination, the camera may not see much unless ambient IR is available.
A thermal camera, by contrast, detects infrared radiation emitted by objects as heat. It does not need an IR lamp to illuminate the scene. Warm objects, such as people, animals, engines, and electrical components, stand out because they emit different thermal energy than their surroundings.
In simple terms, IR night vision sees reflected infrared light, while thermal imaging sees emitted heat energy. Both are part of the infrared family, but their sensors, optics, costs, and use cases are very different.
Important Factors in IR Lighting Performance
The effectiveness of infrared lighting depends on several practical factors. The power of the IR LEDs matters, but it is not the only consideration.
- Range: More powerful illuminators can light up distant objects, but range also depends on lens angle and sensor sensitivity.
- Beam angle: A narrow beam reaches farther, while a wide beam covers more area at a shorter distance.
- Surface reflectivity: Light-colored and reflective objects return more IR than dark or absorbent surfaces.
- Camera sensitivity: Some sensors detect IR far better than others, especially at longer wavelengths.
- Lens and housing materials: Certain plastics and glass types may block or scatter infrared light.

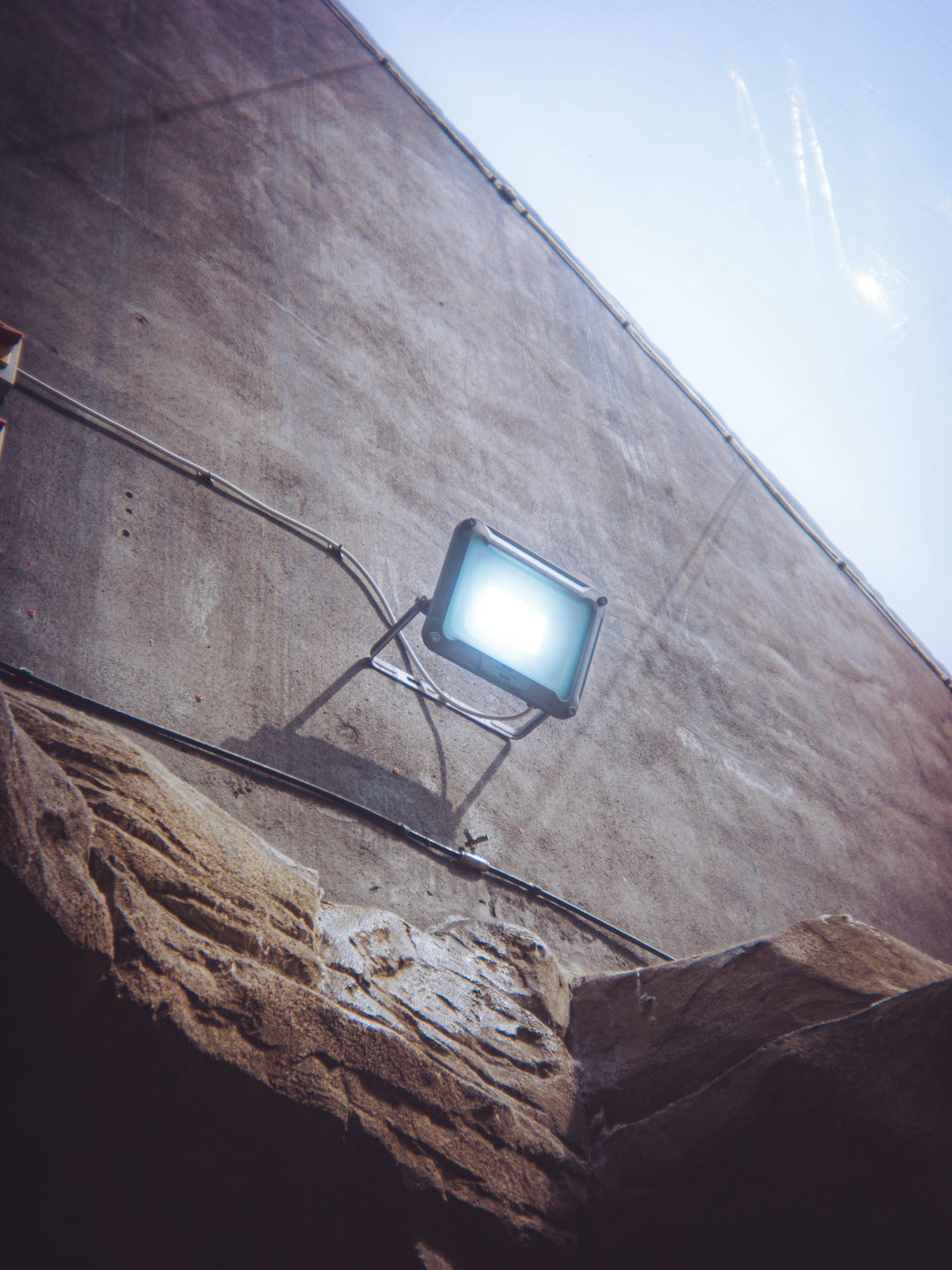

Placement also matters. If an IR illuminator is too close to the camera lens, dust, fog, insects, or rain can reflect light back into the lens and create glare. For larger installations, separate IR floodlights are sometimes positioned away from the camera to improve contrast and reduce backscatter.
Limitations and Safety Considerations
Infrared lighting is useful, but it is not perfect. Heavy fog, smoke, rain, and snow can reduce image clarity because IR light scatters in the air. Highly reflective surfaces may cause overexposed areas, while distant dark objects may remain hard to see.
Most low-power IR LEDs used in consumer cameras are considered safe during normal operation. However, powerful IR lamps and lasers require caution because invisible light can still affect the eyes. Since people cannot see the beam, they may not instinctively look away. Industrial and scientific IR systems should follow appropriate safety standards.
Where Infrared Lighting Is Used
Infrared lighting appears in many everyday and professional technologies. It is essential wherever visibility, detection, or measurement is needed without relying on visible light.
- Security cameras: Night monitoring for homes, businesses, warehouses, and public spaces.
- Wildlife cameras: Animal observation without bright visible light that could disturb behavior.
- Machine vision: Industrial inspection, sorting, alignment, and quality control.
- Smart devices: Face recognition, gesture detection, and proximity sensing.
- Automotive systems: Driver monitoring, cabin sensing, and night assistance technologies.
As sensors become more advanced, infrared lighting continues to support safer navigation, better automation, and more reliable detection in challenging environments.
FAQ
Is infrared light visible to humans?
No. Human eyes cannot normally see infrared light. Some IR LEDs, especially around 850 nm, may show a faint red glow because a small amount of visible light is also emitted.
Why do security cameras use infrared at night?
Security cameras use IR because it allows them to capture images in darkness without visible lighting. The camera detects infrared light reflected from people, vehicles, walls, and other objects.
What is better, 850 nm or 940 nm infrared?
850 nm usually provides better range and brighter images, while 940 nm is more discreet because it produces little visible glow. The better choice depends on whether distance or concealment is more important.
Can infrared see through walls?
Standard IR night vision cannot see through walls. It relies on reflected infrared light from surfaces. Thermal cameras may detect heat patterns on surfaces, but they also cannot truly see through solid walls.
Does infrared lighting work in total darkness?
Yes, active IR lighting can work in total darkness because it provides its own invisible illumination. A compatible camera or sensor is still required to detect it.
Is infrared the same as thermal imaging?
No. Infrared night vision uses reflected IR light, while thermal imaging detects heat emitted by objects. Both involve infrared wavelengths, but they use different technology and produce different types of images.
